The SK6812 – another intelligent RGB LED

During the last months, a new WS2812 alternative appeared on the market: The SK6812. I finally managed to get my hands on some of them to take a closer look. In most aspects these devices are basically clones of the WS2812. What is interesting however, is that the manufacturer came up with a couple of new variations of the stock 5050 RGB LED.

As with many components from mainland china, it seems very difficult to identify the actual manufacturer of these devices, as vendors tend to rebrand data sheets. It appears that at least one of the original manufacturers is Opsco Optoelectronics. However, it is likely that there is more than one manufacturer is using the SK6812 brand, which does possibly only refer to the controller chip itself. The “SK” prefix, on the other hand, is normally used by Shenzhen Sikewei Electronics, which seems to specialize on speech ICs and similar low-cost applications. Are they connected? No idea…

sk6812

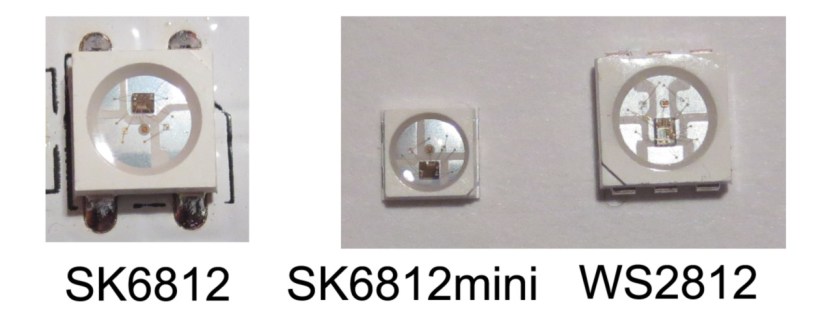

The image above compares the “grandfather”, the WS2812S, with two new devices based on the SK6812 controller. The SK6812 is a direct clone of the WS2812B, while the SK6812mini comes in a smaller package with a 3.5×3.5mm² footprint. This is quite useful, since it allows more dense matrix displays than with the normal 5.0×5.0mm² packages.

Another, less obvious, difference is in the size of the controller IC and LED dies. The SK6812 is actually a bit smaller than the WS2812: Based on a rough measurement, the WS2812 is approximately 0.8×1.05=0.84 mm² while the SK6812 measures 0.6×0.8=0.5 mm². This suggests that the SK6812 is indeed a complete redesign. The smaller chip size should, in principle, also lead to lower cost. Although this depends on the manufacturing technology as well. In the same vein, the SK6812 also uses slighly smaller LED dies. This is most likely another measure to reduce cost.

table

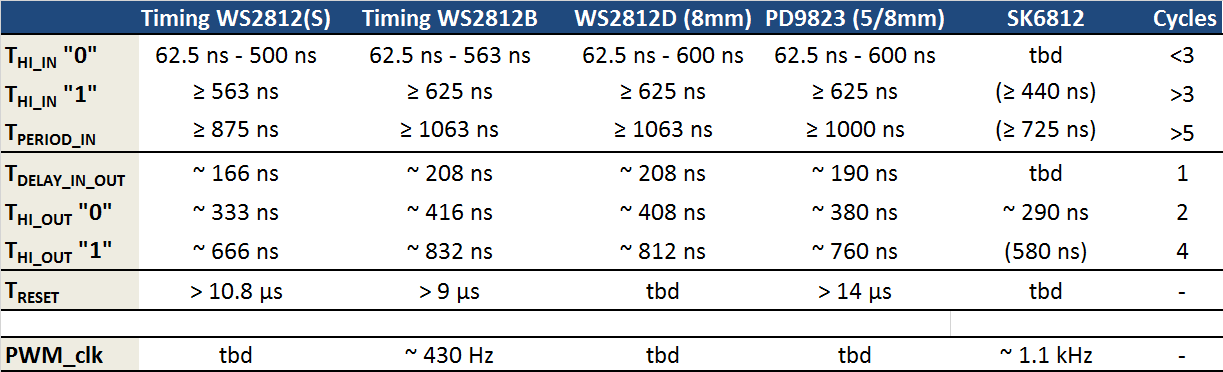

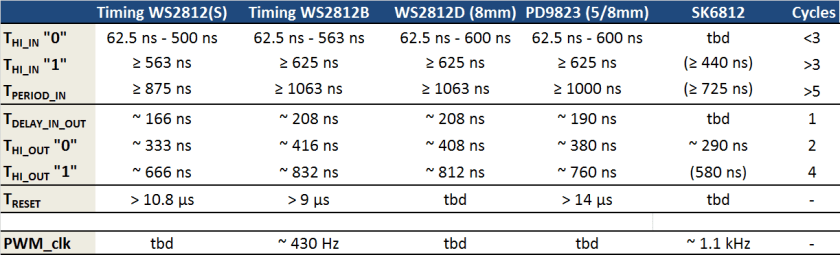

So, how do these devices behave electrically? I subjected the SK6812 to similar tests as I performed previously on the WS2812 and its variants and clones. The results are summarized in the table above. The timing of the SK6812 is slightly faster than that of the WS2812 (“High” timing is 440 ns vs. 625 ns). However, I don’t expect any issues with the timing of existing WS2812 libraries, such as the light_ws2812 library. An interesting difference is that the PWM frequency of the SK6812 is more than twice as high as that of the WS2812 (1.1 kHz vs. 430 Hz). This should lead to less visual flicker, although the frequency is still not high enough for persistence of vision displays.

sk6812mini

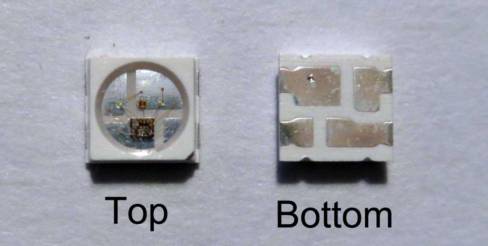

The SK6812 uses an identical package to the WS2182B. What is notable about the SK6812mini is that it does not only use a smaller package, but also a different packaging technology. Here, the metal frame, that is used to mount the dies in the package, also serve directly as solderable contact, as shown in the image above. In principle this should allow better heat removal from the LEDs and the controller chip.

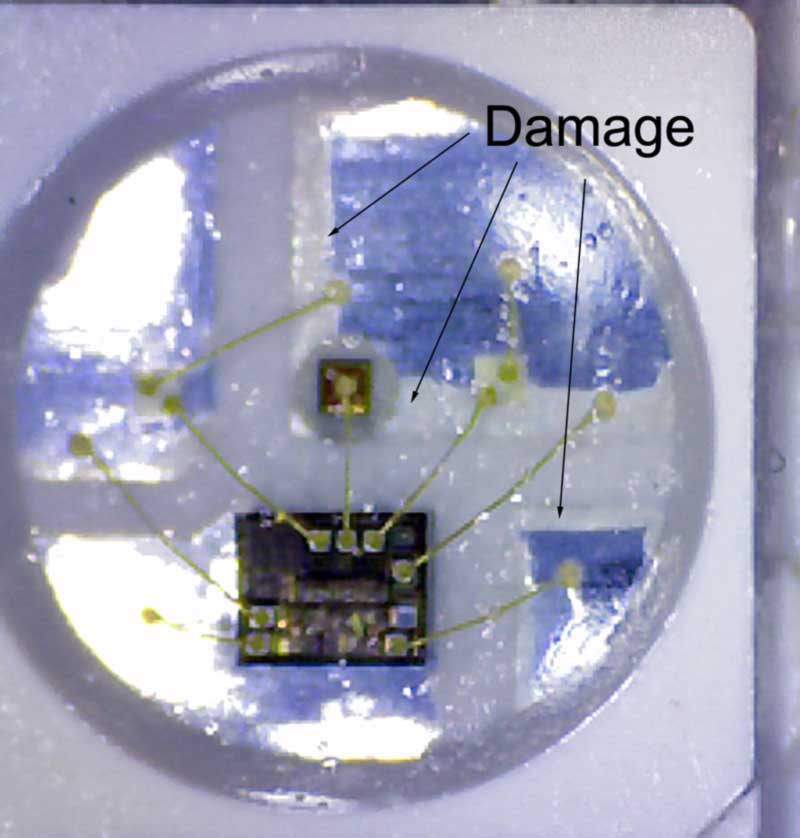

However, heat conduction isn’t a one-way process: The SK6812mini seems to be quite sensitive to heat. If it is overheated during (hand-)soldering, white stuff seems to encroach on the lead frame, which ultimately leads to broken contacts. In the device shown below, the red LED in the center stopped working.

sk6812mini_damaged

Apart from the standard version, the SK6812 also comes in a RGBW version with 4 channels. This adds a white channel to the normal RGB version, which can be used for better color reproduction. This version needs 4 data values per LED. Other than that it seems to be functionally identical to the normal 3 channel controller. I extended the light_ws2812 library to allow controlling RGBW LEDS. Please have a look at the repository for details.

In summary, the SK6812 and its descendants are an interesting variation on the WS2812, most notably the SK6821mini due to its small footprint  and the RGBW version. The improvements are mostly evolutionary, however. I wonder what the next big thing in integrated LED controllers will be?

21 thoughts on “The SK6812 – another intelligent RGB LED

  1. Do you have any info on lumens output for various LED types? I’m curious about approximately how many WS2812s it takes to be equivalent to a 40W incandescent, for example.

    • No idea. In principle the could be calculated from the mcd values in the datasheet in connection with the angular characteristics, but I am not sure how correct they are.

      • I’ve seen some estimates saying it’s about 6.8 lumens per module. A 40W bulb is around 450 lumens, and 60W is 800 lumens. So if that estimate is correct, the combined light of 66 pixels at full brightness is roughly equivalent to the light of a 40W bulb. Or 118 pixels for a 60W (and would consume 19.8W and 35.4W, respectively).

  2. Another thing to note is that the colour sequence of the SK6812 is in standard order (RGB) instead of with the red/green swapped (WS2812 accepts colours in GRB order).

    • SK6812 5mm pkg
      min max avg lumens watts/LED
      R 700 1000 1200 3.77
      G 1500 2200 2600 8.17
      B 700 1000 1200 3.77
      total 5000 15.71 0.4 39.27 lumens/watt

      WS2812/B 5mm pkg
      min max avg lumens watts/LED
      R 550 700 900 2.83
      G 1100 1400 1800 5.65
      B 200 400 400 1.26
      total 3100 9.74 0.3 32.46 lumens/watt

      NB: SK6812 is 80mA@5v, WS2812B is 60mA@5v, 25% higher power consumption. SK6812 also claims ~20% more lumens/watt, may reflect year to year change in available LED specs or different test method.

      Warning: “Your mileage may vary” LEDs are often tested using a short pulse and don’t reflect efficiency lost due to delta Tjc etc. The effect of increased junction temperature in continuous operation is not trivial. Neither manufacturer specifies package thermal resistance.

  3. I have used the SK6812 mini (3535). it is very sensitive to heat. I have used them to make a matrix at 6x6mm grid. Some LEDs, as mentioned, have one color blown up. When heat gets higher the soldering joint breaks.
    I am redesigning with the new WS2812b-mini (also 3535) instead.

  4. Hi Tim,

    Do you have any confirmed WS2812B LEDs that you can measure the dimensions of the IC inside?
    I’m trying to verify which packages I have and unfortunately they’re all sold to me under the misnomer of “WS2812B”. I suspect I actually have both WS2812B and SK6812 LEDs but the dimensions you listed for WS2812 seems like it’s for the 6 pin variant (WS2812S?).

    The dimensions I’m getting for WS2812B variant is 0.7×0.9mm. If you could confirm this for me, then I think I can create a simple guide to identifying the different variants.

    Sadly, my experience so far is that the WS2812B LEDs I sourced directly from Worldsemi are failing (5% defect rate) while the (suspected) SK6812 LEDs in the flexible strip from a different supplier are far more reliable.

    • I got 0.75 mm x 1.05 mm for the WS2812 and 0.6 mm x 0.8 mm for the SK6812. This is measured indirectly by referencing to the package outline (5.0 mm), so there may be some error.

      • Sorry I think there is a misunderstanding. Are those dimensions for the WS2812S or WS2812B?

        The 6 pin package in the photos above is the WS2812S and I was wondering if you had a [confirmed] WS2812B on hand that you could check.

        From other photo sources I believe the IC has been redesigned between the two. However because dealers are selling many of these under the name WS2812B it’s hard to confirm.

      • You are right, it seems there was a slight redesign – the WS2812B chip is missing a couple of bond pads. I believe I have an original WS2812B since I bought it quite early. I do not have and images right now that I could use for a direct size comparison. However, I believe it is quite easy to distinguish WS2812B and SK6812: The SK6812 has the LED bond pads on the long side, while the WS2812B are on the short side.

        I can not rule out, however, that there are further clones out there.

      • Thank you for the good compilation. You are right, there seem to be at least three different revisions of the WS2811/12 IC, plus at least one SK6812. I will check my collection to see if I can find all of them.

        I would suspsect that most of the issues are caused by the LED manfacturers, though. I know of at least 5 different manufacturers and I am sure there are more.

  5. Hi,
    Just following up on Doug’s email – I have also had a very high failure rate on WS2812B strips, but am about to embark on a new project and looking at either WS2813, SK6812 or GE9822 – all of which have the backup data line.
    If anyone can provide any feedback about reliability on these options, it would be very helpful. I have been told by strip manufacturers of the SK6812 and the GE9822 in China that they are more reliable than WS2813, but keen for some impartial information.

    I don’t know what caused the failures in my previous installation, but any advice would be welcome on how to prevent damage from ESD, or transients would be very welcome.

    • I had a look at the WS2813, still pending write up. In principle they are very capable of working around single pixel fails. The same should apply the SK6822. I am not sure about GE6822? Never heard of them.

      One issue the WS2812 is senstive to is latch-up. This can destroy pixels if a high level is applied to the data in pin, before the power has been applied to the power rails. Usually this happens during “hot plugging”. One measure to prevent this is to use a series resistor in the data line in front of the first pixel.

      • AFAIK all commercial CMOS logic is vulnerable to latch up as described and also by charging the backside metal of the chip through the implicit body diode in the channel. i.e. you can also latch it by driving an output high with enough current. Enough Vdd current can undo this if available and it doesn’t use the wirebond(s) as a fuse. …or at least that’s what I recall.
